Driver Configuration
- 1 DD - Bass
- 2 BA - Mid
- 2 BA - High
- 2 Electrostatic- Ultra High
- 1 Bone Conductor to enhance the high and ultra high
Tuning and Sound
Boasting an impressive assembly of eight cutting-edge multi-technology drivers
including Sonion electrostatic drivers, Knowles BA drivers, a custom 10mm dynamic driver and a PZT bone conductor. The onyx is a symphony of precision, power, and clarity.
A custom 10mm dynamic driver provides a powerful and controlled bass response,
and the ante-chamber design ensures a visceral bass experience.
Mids and highs are flawlessly rendered by four Knowles BA drivers, and dual Sonion
electrostatic drivers combined with a PZT bone conductor, provide a spacious and
immersive soundstage that captures the essence of every note with precision.

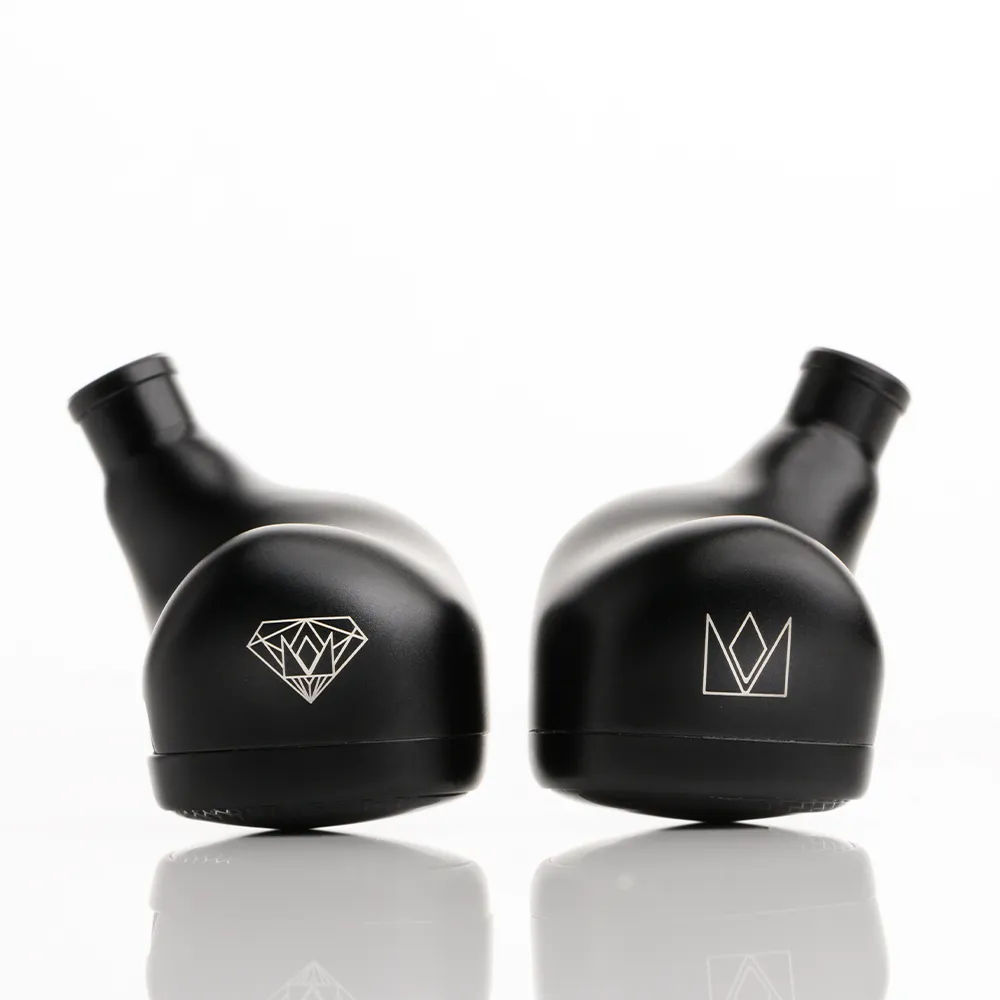

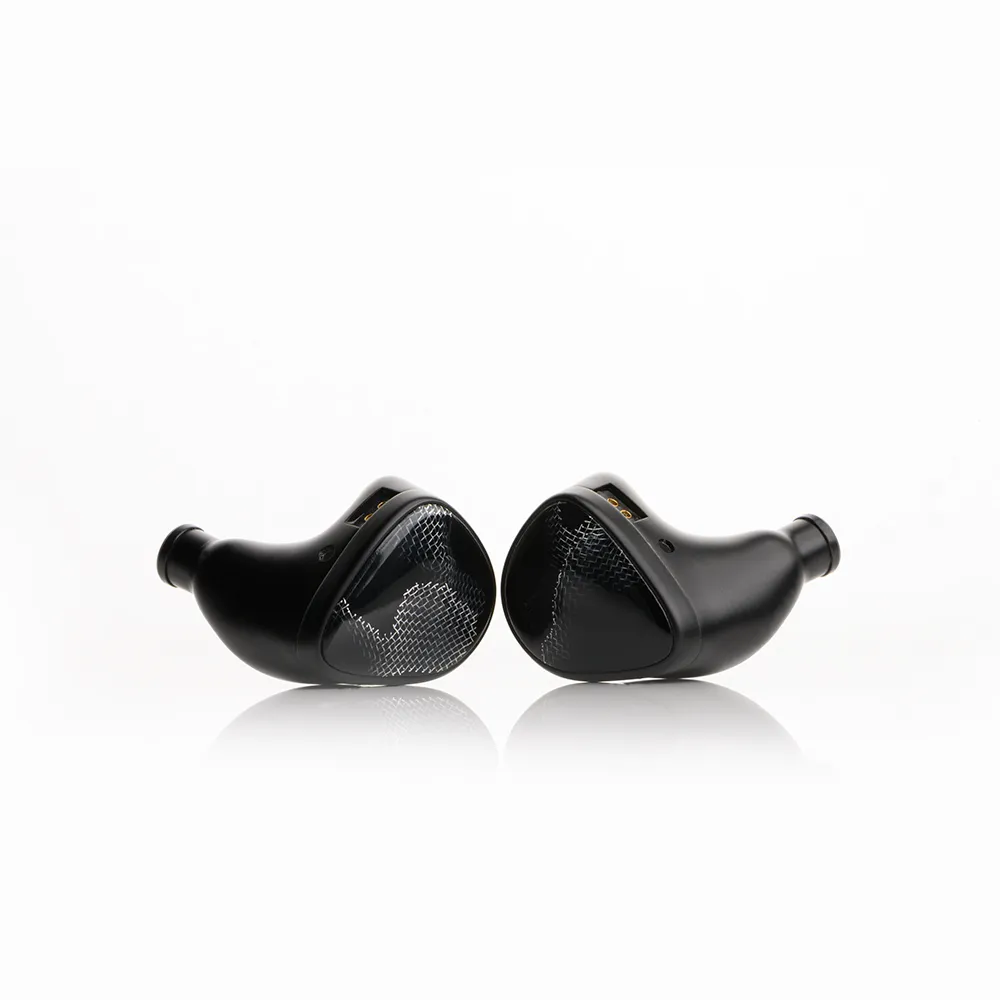

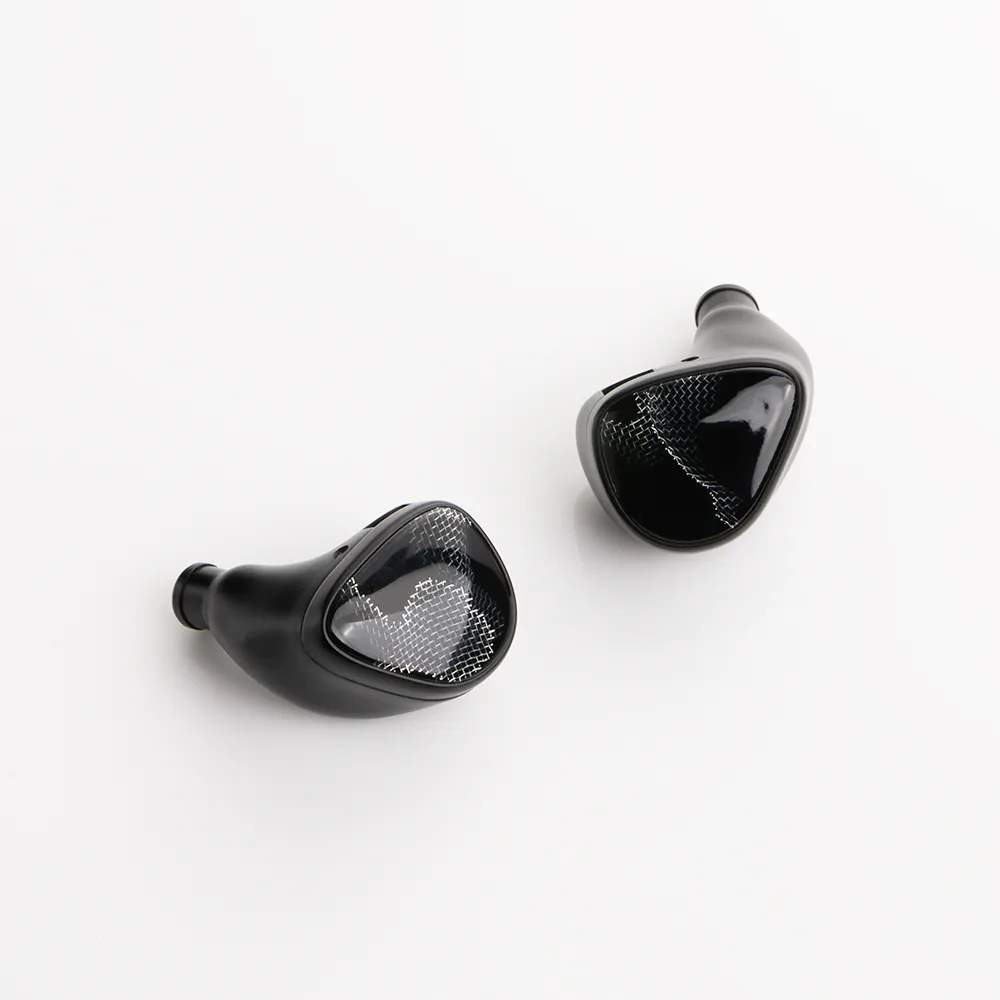

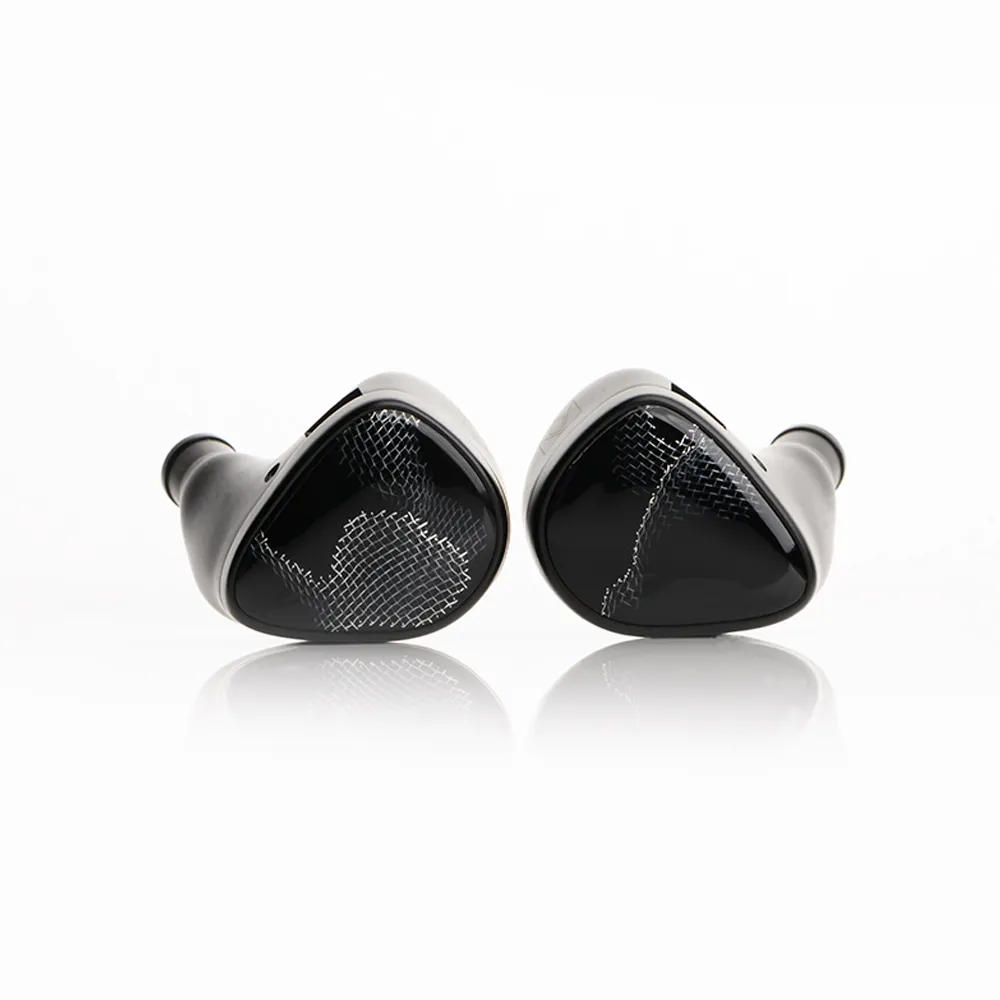

The Onyx shell is precision CNC'd aluminum for durability and rigidity, with a Raffir
composite faceplate, and stainless steel wax guard.

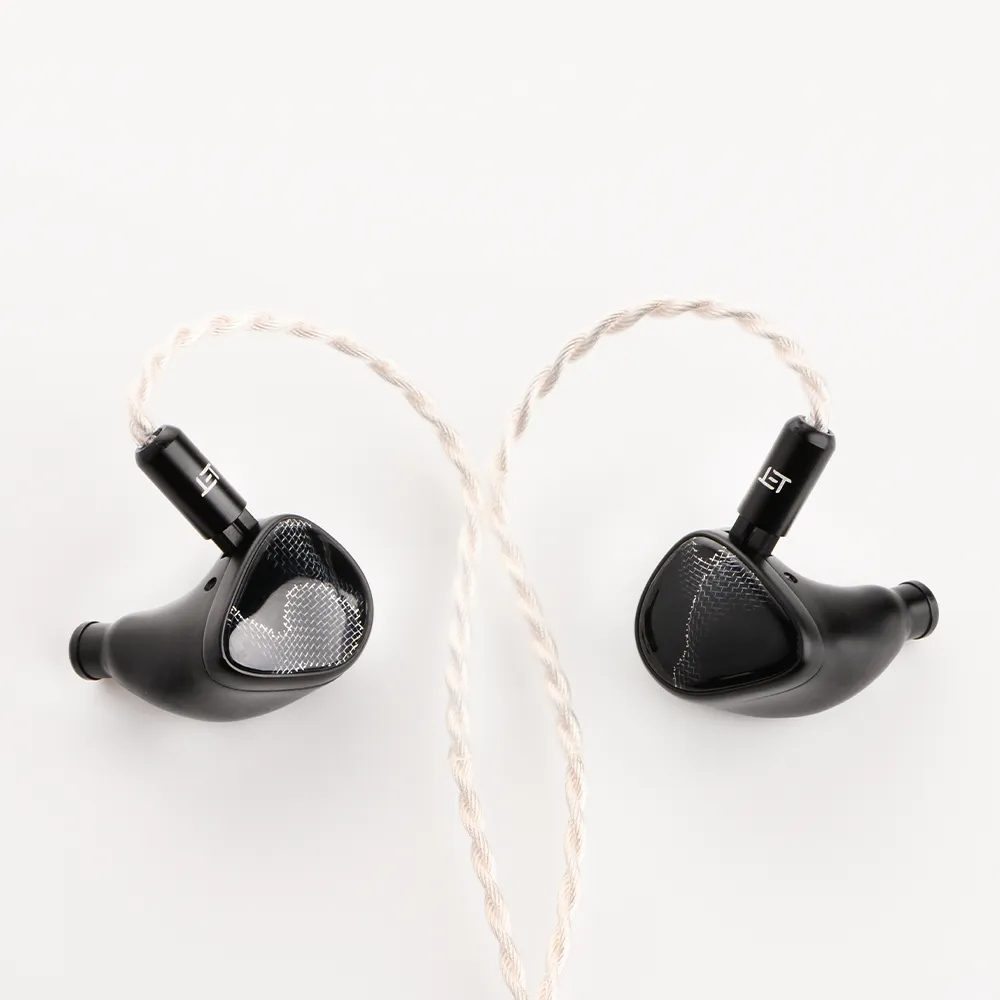

The Onyx comes with the Eletech Courage cable. The Eletech Courage cable is a 4
core cryogenically treated flawless OCC Silver Plated Copper cable with 4.4mm
termination.
Specification Data
- Sensitivity：108dB @1kHz
- Impedance：14Ω
- Frequency: 20Hz-70kHz
- Crossover: 5
Housing
- Black ergonomic semi-custom precision CNC’d aluminum shells
- Raffir composite faceplate
- Stainless steel wax guards
Cable - Eletech Courage, customized for Onyx
Cable Specifications
- 26 AWG, 4 Wires
- Flawless OCC Silver Plated Copper
- Extreme high strand counts
- Hybrid Type-4 Litz Geometry ; Kevlar Resilient Core
- Cryogenically Treated
- Eletech Customised connectors and Y-split
- Individually Enamelled strands
- FlexiMax Insulation
